Using Variable Length Attention in PyTorch

Author: Angel Li

In this tutorial, we will introduce a variable length attention API. This API is called varlen_attn and is a custom op in PyTorch, meaning it is also compilable using torch.compile.

Note: | This tutorial currently requires you to use the PyTorch nightly build. This op currently only works with NVIDIA CUDA on A100 machines or newer. Supported dtypes include BF16 and FP16.

What you will learn

• Variable length attention and how it differs from Scaled Dot Product Attention (SDPA)

• Explore an example of how to use varlen_attn in a simple Transformer attention layer

Prerequisites

• PyTorch v2.10.0.dev or later

• NVIDIA A100 GPU or newer

• A basic understanding of attention and our current offerings. Please reference these tutorials for more details on FlexAttention and SDPA.

Overview of Variable Length Attention

In normal SDPA, sequences are expected to be a fixed length. In practice, this means that input tensors are often padded to the same length in a batch. However, this wastes both memory and compute through storing this padding and performing unnecessary computations. Variable length attention handles sequences of varying length by packing the tensors in a batch together and essentially collapsing the batch dimension.

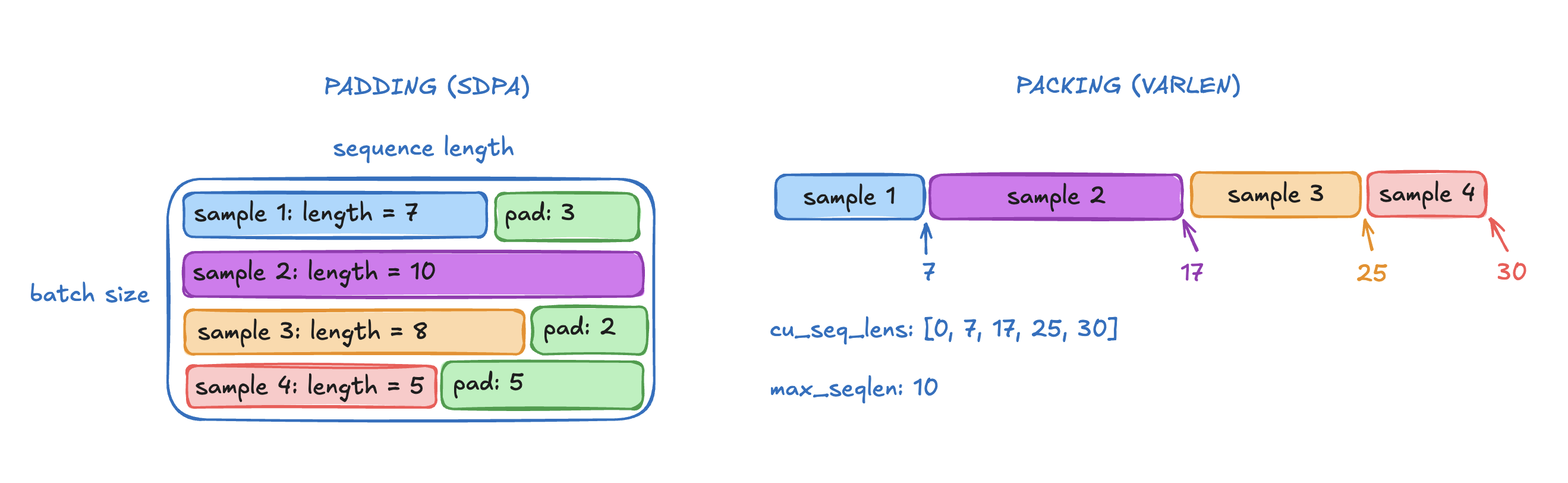

However, we still need to maintain the boundaries between documents. To do so, we compute cumulative sequence positions for query and key/value that mark the end of documents. In the diagram below, doc 1 is 7 tokens long, doc 2 is 10 tokens long, etc. so cu_seq_lens = [0, 7, 17, ...].

Padding vs Packing Diagram

Note that NestedTensor is another way to enable variable length with packed tensors (see tutorial here).

Definition

Below is the definition of varlen_attn which returns the output tensor from the attention computation.

def varlen_attn(
    query: torch.Tensor,
    key: torch.Tensor,
    value: torch.Tensor,
    cu_seq_q: torch.Tensor,
    cu_seq_k: torch.Tensor,
    max_q: int,
    max_k: int,
    is_causal: bool = False,
    return_aux: AuxRequest | None = None,
) -> torch.Tensor | tuple[torch.Tensor, torch.Tensor]:

query, key, and value correspond to the q, k, and v of the packed input. cu_seq_q and cu_seq_k are the cumulative indices for query and key/value, respectively. These mark the logical boundaries that separate the documents in our input. max_q and max_k are the maximum sequence lengths of query and key, respectively. is_causal applies causal masking if set to True and return_aux specifies which auxiliary outputs to return (ie lse).

Note on causal masking When is_causal is set to True, causal masking is applied which means that tokens can only attend to previous tokens. For bidirectional attention, set this flag to False.

In torchtitan (PyTorch’s pretraining framework), we set is_causal = True uniformly to prevent the model from cheating and artificially driving the loss down too quickly.

Example

Let’s walk through a simple example of how we would use varlen_attn in the context of training a Transformer model.

Creating Required Metadata for varlen_attn from Input Batches

Given an input batch, how would we construct the metadata that varlen_attn expects? More specifically, how do we calculate the cumulative sequence indices?

The helper function create_varlen_metadata returns the required cu_seqlens and max_seqlen given input_batch and the end of sequence token ID that marks the end of documents.

import torch


def create_varlen_metadata(input_batch: torch.Tensor, eos_id: int):
    batch_size, seq_len = input_batch.shape
    device = input_batch.device
    cu_seqlens_list, all_seq_lengths = [], []
    offset = 0

    for b in range(batch_size):
        tokens = input_batch[b]
        eos_positions = (tokens == eos_id).nonzero(as_tuple=True)[0].to(torch.int32)

        # we use the position of the eos tokens to mark the end of documents
        sample_cu_seqlens = torch.cat(
            [
                torch.tensor([0], dtype=torch.int32, device=device),
                eos_positions + 1,
                torch.tensor([seq_len], dtype=torch.int32, device=device),
            ]
        )
        sample_cu_seqlens = torch.unique_consecutive(sample_cu_seqlens)

        seq_lengths = torch.diff(sample_cu_seqlens)
        all_seq_lengths.append(seq_lengths)

        cu_seqlens_adjusted = sample_cu_seqlens[:-1] + offset
        cu_seqlens_list.append(cu_seqlens_adjusted)

        offset += seq_len

    packed_cu_seqlens = torch.cat(
        cu_seqlens_list + [torch.tensor([offset], dtype=torch.int32, device=device)]
    )

    max_seqlen = 0
    if len(all_seq_lengths) > 0:
        all_seq_lengths = torch.cat(all_seq_lengths)
        max_seqlen = all_seq_lengths.max().item()

    return packed_cu_seqlens, max_seqlen

Implementing the Attention Block with varlen_attn

Let’s explore how we would use varlen_attn in an Attention module. We define an attention module as usual, but in the forward method, we call the new varlen_attn custom op.

This function expects the cu_seq indices and max_len that we computed earlier using create_varlen_metadata to mark the boundaries of the different documents.

Before we call varlen_attn, we also pack our input so that it has the shape (total tokens, dim). Recall that variable length attention allows us to collapse the batch_size dimension so that we can lay out our input samples contiguously.

import torch
import torch.nn as nn
from torch.nn.attention.varlen import varlen_attn


class SimpleVarlenAttention(nn.Module):
    def __init__(self, embed_dim: int, num_heads: int):
        super().__init__()
        self.embed_dim = embed_dim
        self.num_heads = num_heads
        self.head_dim = embed_dim // num_heads

        self.qkv_proj = nn.Linear(embed_dim, 3 * embed_dim, bias=False)
        self.out_proj = nn.Linear(embed_dim, embed_dim, bias=False)

    def forward(
        self, x: torch.Tensor, cu_seq: torch.Tensor, max_len: int
    ) -> torch.Tensor:
        batch_size, seq_len, _ = x.shape
        x_packed = x.view(batch_size * seq_len, -1)  # pack x into (total_tokens, dim)

        qkv = self.qkv_proj(x_packed)
        q, k, v = qkv.chunk(3, dim=-1)

        q = q.view(-1, self.num_heads, self.head_dim)
        k = k.view(-1, self.num_heads, self.head_dim)
        v = v.view(-1, self.num_heads, self.head_dim)

        attn_out = varlen_attn(
            query=q,
            key=k,
            value=v,
            cu_seq_q=cu_seq,
            cu_seq_k=cu_seq,
            max_q=max_len,
            max_k=max_len,
            is_causal=True,
        )
        attn_out = attn_out.view(-1, self.embed_dim)
        attn_out = self.out_proj(attn_out)
        return attn_out.view(batch_size, seq_len, self.embed_dim)

We can also use torch.compile with varlen_attn and define:

compiled_varlen_attn: ClassVar[Callable] = torch.compile(
    varlen_attn, mode="max-autotune-no-cudagraphs"
)

We can call compiled_varlen_attn instead of varlen_attn in the Attention forward, and everything else stays the same.

Creating a Transformer

Now, we can use this SimpleVarlenAttention module in a simple Transformer.

class SimpleVarlenTransformer(nn.Module):
    """
    simple 1 layer transformer with varlen attention
    """

    def __init__(self, vocab_size: int, embed_dim: int, num_heads: int):
        super().__init__()
        self.tok_embeddings = nn.Embedding(vocab_size, embed_dim)
        self.attention = SimpleVarlenAttention(embed_dim, num_heads)
        self.norm = nn.LayerNorm(embed_dim)

    def forward(
        self, tokens: torch.Tensor, cu_seq: torch.Tensor, max_len: int
    ) -> torch.Tensor:
        x = self.tok_embeddings(tokens)
        x = x + self.attention(x, cu_seq, max_len)
        x = self.norm(x)
        return x

Running a Training Step

Now we’re ready to put all the pieces together! Let’s run a training step with our SimpleVarlenTransformer. We define our model, compute cu_seq and max_len using create_varlen_metadata, and run a forward and backward pass.

def main():
    torch.manual_seed(42)

    batch_size = 3
    seq_len = 64
    vocab_size = 1000
    embed_dim = 128
    num_heads = 4
    eos_id = 2
    num_docs = 3
    device = "cuda"
    dtype = torch.bfloat16

    model = SimpleVarlenTransformer(vocab_size, embed_dim, num_heads).to(
        device=device, dtype=dtype
    )

    # create input_batch tokens
    input_batch = torch.randint(0, vocab_size, (batch_size, seq_len), device=device)

    for b in range(batch_size):
        # getting random positions to cut the input into multiple documents
        doc_positions = torch.randint(10, seq_len - 1, (num_docs - 1,))
        for pos in doc_positions:
            input_batch[b, pos] = eos_id  # insert eos token to simulate end of sample
        input_batch[b, -1] = eos_id

    cu_seq, max_len = create_varlen_metadata(input_batch, eos_id)
    print(
        f"cu_seq: {cu_seq}, max_len: {max_len}"
    )  # cu_seq: tensor([0, 32, 47, 64, 92, 103, 128, 168, 177, 192]), max_len: 40

    # fwd pass
    output = model(input_batch, cu_seq, max_len)
    print(f"output shape: {output.shape}")  # (3, 64, 128)

    # bwd pass
    loss = output.mean()
    loss.backward()


if __name__ == "__main__":
    main()

cu_seq: tensor([  0,  32,  47,  64,  92, 103, 128, 168, 177, 192], device='cuda:0',
       dtype=torch.int32), max_len: 40
output shape: torch.Size([3, 64, 128])

Conclusion

In this tutorial, we have covered how to use the varlen_attn API in PyTorch to efficiently handle sequences of varying lengths without padding. We explored how to create the necessary metadata including the cumulative sequence indices, implemented a simple Transformer attention layer with variable length attention, and ran a complete training step.

This approach eliminates wasted computation on padding tokens and enables more efficient training and inference for models processing documents of different lengths.
