Getting started#

This tour takes about one hour. It starts with your first TensorDict and ends with saving it and passing it to a model. Each section links to the user guide page that gives the details.

All the examples run on a CPU. Run them in order in one Python session, because later examples use names that earlier ones define. If tensordict is not installed yet, read Installation first.

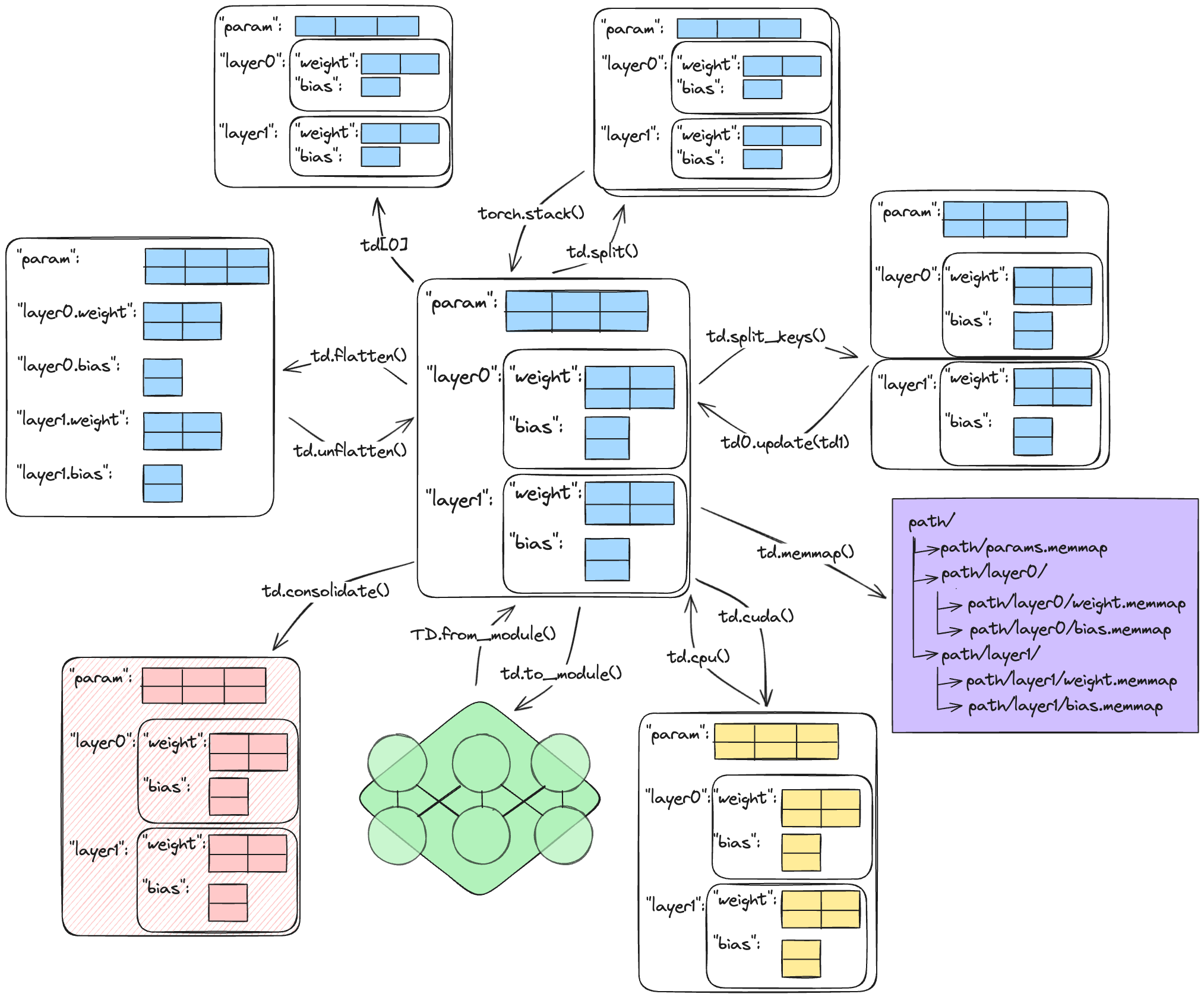

A nested TensorDict in the center, with arrows to the result of td[0], torch.stack, td.split, td.split_keys, td0.update(td1), td.memmap, td.cuda, td.cpu, td.to_module, TensorDict.from_module, td.consolidate, and flatten_keys.

Common operations on one nested TensorDict. The two arrows on the left, labeled td.flatten() and td.unflatten(), are flatten_keys() and unflatten_keys().#

Create a TensorDict#

A TensorDict is a dictionary of tensors. Give it the entries as a dict. TensorDict converts NumPy arrays and int, float, and bool values to torch.Tensor:

>>> import torch
>>> from tensordict import TensorDict
>>> td = TensorDict({"a": 0, "b": torch.ones(3)})
>>> td
TensorDict(batch_size=[], fields={a: i64[], b: f32[3]})
>>> td["a"]
tensor(0)

A TensorDict has the methods of a Python dict: keys, values, items, get, update, pop, setdefault, and others. Keys are strings, or tuples of strings for nested entries. select() keeps some entries and exclude() removes them. Both return a new TensorDict:

>>> td["c"] = torch.zeros(2)
>>> sorted(td.keys())
['a', 'b', 'c']
>>> sorted(td.exclude("b").keys())
['a', 'c']
>>> td.select("a", "c")["c"]
tensor([0., 0.])

Batch size and batch dimensions#

Every TensorDict has a batch size, batch_size: the leading dimensions that all its tensors share. These dimensions are the batch dimensions. The tensors of a TensorDict are its leaves. A leaf can have more dimensions after the batch dimensions, and the leaves can have different dtypes. This TensorDict holds 4 time steps of 3 sensors, with 5 channels for each reading:

>>> data = TensorDict(
...     {
...         "reading": torch.ones(3, 4, 5),
...         "valid": torch.zeros(3, 4, dtype=torch.bool),
...     },
...     batch_size=[3, 4],
... )
>>> data.batch_size
torch.Size([3, 4])
>>> data.shape
torch.Size([3, 4])

shape is another name for batch_size. The first dimensions of each tensor that you write must be equal to batch_size. If they are not, TensorDict raises a RuntimeError:

>>> data["offset"] = torch.zeros(2)
Traceback (most recent call last):
...
RuntimeError: batch dimension mismatch, got self.batch_size=torch.Size([3, 4]) and value.shape=torch.Size([2]) for key 'offset'. The leading dimensions of a value must match the batch size.

If you do not give batch_size, it is torch.Size([]): the TensorDict has no batch dimensions. TensorDict does not infer the batch size from the tensors. To infer it, use from_dict() with auto_batch_size=True, or call auto_batch_size_(). Both set the batch size to the leading dimensions that all the leaves share:

>>> TensorDict({"reading": torch.ones(3, 4, 5)}).batch_size
torch.Size([])
>>> TensorDict.from_dict(
...     {"reading": torch.ones(3, 4, 5), "valid": torch.zeros(3, 4)},
...     auto_batch_size=True,
... ).batch_size
torch.Size([3, 4])

A TensorDict acts like a tensor, so some dict operations act on the batch dimensions and not on the keys:

  • for x in data gives the sub-TensorDicts along the first batch dimension, like a loop over a tensor. To iterate over the keys, use data.keys().

  • len(data) is the size of the first batch dimension, data.batch_size[0].

  • data[0] indexes the batch. An integer is never a key.

  • bool(data) raises a RuntimeError. To test for entries, use data.is_empty().

  • "reading" in data tests the keys, as for a dict.

For the data of this section:

>>> len(data)
3
>>> [x.batch_size for x in data][0]
torch.Size([4])
>>> "reading" in data
True

Batch size, shapes, and indexing explains the batch size in detail.

Indexing and shape operations#

Indexing, slicing, and shape operations apply to the batch dimensions. They return a new TensorDict, with the same operation applied to every leaf:

>>> sub = data[..., :2]
>>> sub.batch_size
torch.Size([3, 2])
>>> sub["reading"].shape
torch.Size([3, 2, 5])
>>> data[0, 1]["reading"].shape
torch.Size([5])
>>> data.reshape(-1).batch_size
torch.Size([12])
>>> data.unsqueeze(-1).batch_size
torch.Size([3, 4, 1])
>>> data.permute(1, 0)["reading"].shape
torch.Size([4, 3, 5])

A boolean mask over the batch dimensions selects elements, as for a tensor:

>>> mask = torch.tensor([True, False, True])
>>> data[mask].batch_size
torch.Size([2, 4])

To write into a part of a TensorDict, index it on the left of =:

>>> data[0] = TensorDict(
...     {
...         "reading": torch.zeros(4, 5),
...         "valid": torch.ones(4, dtype=torch.bool),
...     },
...     batch_size=[4],
... )
>>> data["valid"][0]
tensor([True, True, True, True])

Batch size, shapes, and indexing covers indexing and the shape operations.

TensorClass: the class form#

TensorClass is the class form of a TensorDict. You declare the fields as class annotations, like a dataclass, and you add your own methods. A TensorClass has the tensor behavior of a TensorDict: the batch size, indexing, shape operations, and the batch-size check. This class holds a batch of images and their labels:

>>> from tensordict import TensorClass
>>> class Batch(TensorClass):
...     image: torch.Tensor
...     label: torch.Tensor
...
...     def select_label(self, label):
...         return self[self.label == label]
>>> _ = torch.manual_seed(0)
>>> images = Batch(
...     image=torch.randn(6, 3, 8, 8),
...     label=torch.tensor([0, 1, 0, 2, 1, 0]),
...     batch_size=[6],
... )
>>> images.select_label(0).batch_size
torch.Size([3])
>>> type(images[0]).__name__
'Batch'
>>> images.reshape(2, 3).image.shape
torch.Size([2, 3, 3, 8, 8])

Use a TensorDict when you do not know the keys in advance, and a TensorClass for a fixed set of fields. Three other containers have the same operations:

TensorClass: a dataclass of tensors explains TensorClass, and Which container should I use? compares the containers.

Nested TensorDicts and tuple keys#

A TensorDict can contain other TensorDicts. A dict value becomes a nested TensorDict with the batch size of its parent. To read or write a nested entry, use a tuple of keys. In reinforcement learning, for example, a nested "next" entry holds the data of the next step:

>>> data = TensorDict(
...     {
...         "obs": torch.ones(3, 4),
...         "next": {"obs": torch.zeros(3, 4)},
...     },
...     batch_size=[3],
... )
>>> data["next"].batch_size
torch.Size([3])
>>> data["next", "obs"].shape
torch.Size([3, 4])
>>> data["next", "reward"] = torch.ones(3)
>>> list(data.keys(include_nested=True, leaves_only=True))
['obs', ('next', 'obs'), ('next', 'reward')]

The batch_size of a nested TensorDict must start with the batch_size of its parent, and it can have more dimensions. For example, a child with batch_size=[3, 4] fits in a parent with batch_size=[3].

flatten_keys() changes a nested TensorDict to one level, with the keys joined by a separator. unflatten_keys() changes it back:

>>> flat = data.flatten_keys(".")
>>> sorted(flat.keys())
['next.obs', 'next.reward', 'obs']
>>> sorted(flat.unflatten_keys(".").keys())
['next', 'obs']

Keys, nested keys, and locking explains nested keys and the methods that select and flatten them.

Devices, dtypes, and arithmetic#

to() moves or casts every leaf with one call. A dtype casts every leaf, the integer and boolean ones too. If you set device when you create a TensorDict, TensorDict moves each tensor that you write to that device:

>>> device = "cuda" if torch.cuda.is_available() else "cpu"
>>> data = TensorDict({"pos": torch.ones(3, 4), "step": torch.arange(3)}, batch_size=[3])
>>> data.to(device)["pos"].device.type == device
True
>>> data.to(torch.float64)["step"].dtype
torch.float64
>>> on_device = TensorDict(batch_size=[3], device=device)
>>> on_device["pos"] = torch.ones(3, 4)
>>> on_device["pos"].device.type == device
True

Arithmetic and most pointwise functions apply to every leaf. Between two TensorDicts, they apply to the leaves with the same key:

>>> (data * 2)["pos"][0]
tensor([2., 2., 2., 2.])
>>> (data + data)["step"]
tensor([0, 2, 4])
>>> data.abs()["pos"].shape
torch.Size([3, 4])

If TensorDict has no method for an operation, use apply(). It calls a function on each leaf and returns a new TensorDict. apply_ writes the results into the same TensorDict:

>>> data.apply(lambda x: x.float().mean(-1) if x.ndim > 1 else x)["pos"]
tensor([1., 1., 1.])

Devices, dtypes, and memory explains devices, dtypes, and non_blocking copies. Arithmetic, apply, reductions, and gradients lists the arithmetic, reductions, and apply.

Stacking and concatenation#

torch.stack() and torch.cat() accept a list of TensorDicts. They stack or concatenate each leaf, and add or extend a batch dimension:

>>> samples = [
...     TensorDict({"features": torch.ones(4), "target": torch.zeros(())}, batch_size=[])
...     for _ in range(3)
... ]
>>> batch = torch.stack(samples)
>>> batch.batch_size
torch.Size([3])
>>> batch["features"].shape
torch.Size([3, 4])
>>> torch.cat([batch, batch]).batch_size
torch.Size([6])

torch.stack() needs leaves with the same shape. For data of different sizes, such as sentences or DNA reads of different lengths, use lazy_stack(). It keeps the TensorDicts as a list, in a LazyStackedTensorDict, and stacks a leaf only when you read it. To read a leaf with different shapes, ask for a list or a padded tensor:

>>> from tensordict import lazy_stack
>>> ragged = lazy_stack([TensorDict({"tokens": torch.arange(n)}) for n in (2, 5)])
>>> ragged.batch_size
torch.Size([2])
>>> ragged[1]["tokens"].shape
torch.Size([5])
>>> [x.shape for x in ragged.get("tokens", as_list=True)]
[torch.Size([2]), torch.Size([5])]
>>> ragged.get("tokens", as_padded_tensor=True).shape
torch.Size([2, 5])

Stacking and variable-size data explains lazy stacks and the other ways to store data of different sizes.

Non-tensor data#

A TensorDict can also hold values that are not tensors, such as strings. Reading one returns the value:

>>> data = TensorDict({"weight": torch.ones(3)}, batch_size=[3])
>>> data["label"] = "cat"
>>> data["label"]
'cat'

TensorDict stores one value for the whole batch. Every element has that value, so indexing keeps it:

>>> data[0]["label"]
'cat'

When you stack TensorDicts, the non-tensor values become a list:

>>> pets = torch.stack([TensorDict({"label": "cat"}), TensorDict({"label": "dog"})])
>>> list(pets["label"])
['cat', 'dog']

Non-tensor data and unbatched entries explains how TensorDict stores these values, and how they behave under indexing and stacking.

Save and load#

memmap() writes a TensorDict to a directory, with one file for each leaf, and returns a memory-mapped copy. load_memmap() maps the files back into memory. It reads the data from disk only when you use it. save() and load() are other names for the same two methods:

>>> import tempfile
>>> tmpdir = tempfile.TemporaryDirectory()
>>> data = TensorDict(
...     {
...         "pos": torch.arange(6).reshape(3, 2),
...         "meta": TensorDict({"scale": torch.zeros(3, 2)}, batch_size=[3]),
...     },
...     batch_size=[3],
... )
>>> _ = data.memmap(tmpdir.name)
>>> loaded = TensorDict.load_memmap(tmpdir.name)
>>> loaded.batch_size
torch.Size([3])
>>> loaded["pos"][1]
MemoryMappedTensor([2, 3])
>>> loaded["meta", "scale"].shape
torch.Size([3, 2])
>>> tmpdir.cleanup()

Tensors are stored without pickle. Non-tensor values that JSON cannot store are stored with pickle, and load_memmap loads them only if you allow it with allow_pickle. consolidate() copies all the leaves into one storage. A device move or an inter-process transfer of the result then copies one buffer.

Save and load tensordicts compares memmap, torch.save(), and state_dict. Large datasets and storage backends covers datasets that do not fit in memory.

Locking#

lock_() locks a TensorDict. A locked TensorDict does not accept new keys, and you cannot delete or replace an entry. You can still write new values into the existing tensors with set_() and update_(). These methods copy the values into the same storage, or replace the value of a non-tensor entry:

>>> data = TensorDict({"pos": torch.zeros(3)}, batch_size=[3]).lock_()
>>> data["vel"] = torch.ones(3)
Traceback (most recent call last):
...
RuntimeError: Cannot modify locked TensorDict. For in-place modification, consider using the `set_()` method and make sure the key is present.
>>> _ = data.set_("pos", torch.ones(3))
>>> data["pos"]
tensor([1., 1., 1.])

memmap and consolidate return a locked TensorDict. unlock_() unlocks it. To unlock a TensorDict for some lines only, use unlock_ as a context manager:

>>> with data.unlock_():
...     data["vel"] = torch.ones(3)
>>> data.is_locked
True

Keys, nested keys, and locking explains locking and the other context managers. In-place operations explains which methods write into the same storage.

TensorDict and modules#

from_module() puts the parameters and buffers of a torch.nn.Module in a TensorDict, with the structure of the module. to_module() puts them back. As a context manager, to_module sets other values for some lines only, and then restores the original parameters:

>>> from torch import nn
>>> model = nn.Sequential(nn.Linear(3, 4), nn.Linear(4, 2))
>>> params = TensorDict.from_module(model)
>>> params["0", "weight"].shape
torch.Size([4, 3])
>>> zeros = params.detach().clone().zero_()
>>> with zeros.to_module(model):
...     out = model(torch.ones(3))
>>> out
tensor([0., 0.], grad_fn=<...>)

Each leaf has its own file, so you can save the parameters with memmap and load the parameters of one submodule only, from its subdirectory. To load memory-mapped parameters into a model, pass inplace=True. to_module then copies the values into the parameters of the model:

>>> tmpdir = tempfile.TemporaryDirectory()
>>> _ = params.memmap(tmpdir.name)
>>> _ = TensorDict.load_memmap(tmpdir.name).to_module(model, inplace=True)
>>> _ = TensorDict.load_memmap(f"{tmpdir.name}/0").to_module(model[0], inplace=True)
>>> tmpdir.cleanup()

Without inplace=True, the parameters of the model use the memory-mapped files as their storage. A change to a parameter, for example an optimizer step, can then change the files (Save and load tensordicts explains when).

TensorDictModule wraps a module so that it reads its inputs from a TensorDict and writes its outputs into the same TensorDict. in_keys and out_keys name the entries. TensorDictSequential chains such modules:

>>> from tensordict.nn import TensorDictModule, TensorDictSequential
>>> net = TensorDictSequential(
...     TensorDictModule(nn.Linear(3, 8), in_keys=["features"], out_keys=["hidden"]),
...     TensorDictModule(nn.Linear(8, 2), in_keys=["hidden"], out_keys=["logits"]),
... )
>>> batch = TensorDict({"features": torch.randn(4, 3)}, batch_size=[4])
>>> _ = net(batch)
>>> batch["logits"].shape
torch.Size([4, 2])

The model and the loss read and write the same TensorDict, so one training loop works for data with different keys. Modules: TensorDictModule and tensordict.nn explains tensordict.nn. torch.compile, torch.func, torch.export, and CUDA graphs covers torch.compile and torch.vmap with parameter TensorDicts.
