Batched data loading with tensorclasses#

A torchvision image pipeline opens, decodes, and transforms each image file again at every epoch, one image at a time. This tutorial stores the images once in the memory-mapped fields of a TensorClass, then reads and transforms whole batches. A memory-mapped tensor is a tensor whose values are stored in a file and read through the page cache of the operating system. This tutorial is for readers who train from a folder of image files.

What you will learn:

  • How to write a TensorClass that loads a dataset into MemoryMappedTensor fields.

  • How to store images as uint8 and normalize them only when a batch is loaded.

  • How to apply random crops and flips to a whole batch with a custom collate_fn.

  • How to compare the loading rate with a regular torchvision pipeline.

Before you start, read Devices and memory-mapped tensors for memory-mapped tensors and TensorClass: a dataclass of tensors for tensorclasses.

The tutorial loads the dataset once into memory-mapped tensors and applies the deterministic transforms (resize and center crop) at that time. During training, the data loader reads whole batches from the memory-mapped tensors instead of single image files. It applies the random transforms (crop and flip) and the normalization to each batch, on the device.

The dataset is the subset of ImageNet used in the PyTorch transfer learning tutorial. At the end of the page, two charts show the results of the same approach on the full ImageNet dataset.

Note

Download hymenoptera_data.zip and extract it into data/, so that the images are in data/hymenoptera_data.

Note

The regular data loaders below use NUM_WORKERS worker processes. On macOS and Windows, worker processes start with the spawn method, which imports the script again in each worker. If you run this file as a script on these systems, put the code under if __name__ == "__main__":, or set the environment variable NUM_WORKERS=0.

import os
import time
from pathlib import Path

import torch
import torch.nn as nn

from tensordict import MemoryMappedTensor, TensorClass
from torch.utils.data import DataLoader
from torchvision import datasets, transforms

NUM_WORKERS = int(os.environ.get("NUM_WORKERS", "4"))
device = "cuda:0" if torch.cuda.is_available() else "cpu"
print(f"Using device: {device}")

Using device: cpu

Transforms#

First, define the transforms of the regular torchvision pipeline. The train transform has random components, so that the model sees a different crop and flip of each image at each epoch.

train_transform = transforms.Compose(
    [
        transforms.RandomResizedCrop(224),
        transforms.RandomHorizontalFlip(),
        transforms.ToTensor(),
        transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]),
    ]
)

val_transform = transforms.Compose(
    [
        transforms.Resize(256),
        transforms.CenterCrop(224),
        transforms.ToTensor(),
        transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]),
    ]
)

torchvision.datasets.ImageFolder reads the images from disk and applies these transforms to one image at a time.

data_dir = Path("data") / "hymenoptera_data/"

train_data = datasets.ImageFolder(root=data_dir / "train", transform=train_transform)
val_data = datasets.ImageFolder(root=data_dir / "val", transform=val_transform)

The memory-mapped tensors get their data from two other datasets, which apply only the deterministic transforms. PILToTensor keeps the pixel values as uint8 integers between 0 and 255. A uint8 image takes a quarter of the space of a float32 image.

  • The raw train dataset resizes each image to 256 x 256 pixels. The random crop to 224 x 224 pixels comes later, at load time.

  • The raw val dataset applies the full val transform except the normalization: resize, then center crop to 224 x 224 pixels.

train_data_raw = datasets.ImageFolder(
    root=data_dir / "train",
    transform=transforms.Compose(
        [transforms.Resize((256, 256)), transforms.PILToTensor()]
    ),
)
val_data_raw = datasets.ImageFolder(
    root=data_dir / "val",
    transform=transforms.Compose(
        [
            transforms.Resize(256),
            transforms.CenterCrop(224),
            transforms.PILToTensor(),
        ]
    ),
)

Batched transforms#

The tensorclass data loader reads a batch of images at a time, so the transforms below work on a batch. First, a normalization that converts the uint8 values to normalized float32 values.

class InvAffine(nn.Module):
    """A custom normalization layer."""

    def __init__(self, loc, scale):
        super().__init__()
        self.loc = loc
        self.scale = scale

    def forward(self, x):
        return (x - self.loc) / self.scale

Next, two transforms that flip and crop each image of the batch at random.

class RandomHFlip(nn.Module):
    def forward(self, x: torch.Tensor):
        idx = (
            torch.zeros(*x.shape[:-3], 1, 1, 1, device=x.device, dtype=torch.bool)
            .bernoulli_()
            .expand_as(x)
        )
        return x.masked_fill(idx, 0.0) + x.masked_fill(~idx, 0.0).flip(-1)


class RandomCrop(nn.Module):
    def __init__(self, w, h):
        super().__init__()
        self.w = w
        self.h = h

    def forward(self, x):
        batch = x.shape[:-3]
        index0 = torch.randint(x.shape[-2] - self.h, (*batch, 1), device=x.device)
        index0 = index0 + torch.arange(self.h, device=x.device)
        index0 = (
            index0.unsqueeze(1).unsqueeze(-1).expand((*batch, 3, self.h, x.shape[-1]))
        )
        index1 = torch.randint(x.shape[-1] - self.w, (*batch, 1), device=x.device)
        index1 = index1 + torch.arange(self.w, device=x.device)
        index1 = index1.unsqueeze(1).unsqueeze(-2).expand((*batch, 3, self.h, self.w))
        return x.gather(-2, index0).gather(-1, index1)

The normalization uses the mean and standard deviation of the Normalize transforms above, multiplied by 255 because the stored values are between 0 and 255. The train batches are normalized, then cropped and flipped. The val batches are only normalized.

normalize = InvAffine(
    loc=torch.tensor([0.485, 0.456, 0.406], device=device).view(3, 1, 1) * 255,
    scale=torch.tensor([0.229, 0.224, 0.225], device=device).view(3, 1, 1) * 255,
)
train_collate_transform = nn.Sequential(
    normalize,
    RandomCrop(224, 224),
    RandomHFlip(),
)

Representing data with a TensorClass#

A tensorclass is the class form of a tensordict: a dataclass whose fields are tensors. Like a TensorDict, it has a batch size, and you can index it, move it to a device, or memory-map it. Use a tensorclass when you know the fields of your data in advance. To define one, subclass TensorClass.

A tensorclass can also have methods. The from_dataset class method below allocates a uint8 memory-mapped tensor for the images, then fills it with batches read from the dataset. Its argument is one of the raw datasets above, so every image has the same shape and dtype.

class ImageNetData(TensorClass):
    images: torch.Tensor
    targets: torch.Tensor

    @classmethod
    def from_dataset(cls, dataset):
        data = cls(
            images=MemoryMappedTensor.empty(
                (len(dataset), *dataset[0][0].squeeze().shape),
                dtype=torch.uint8,
            ),
            targets=MemoryMappedTensor.empty((len(dataset),), dtype=torch.int64),
            batch_size=[len(dataset)],
        )
        # memmap_() locks the tensorclass: you cannot add fields any more,
        # but you can write into the existing tensors. After this call,
        # data.is_memmap() returns True.
        data.memmap_()

        dl = DataLoader(dataset, batch_size=64, num_workers=NUM_WORKERS)
        i = 0
        for image, target in dl:
            n = image.shape[0]
            data[i : i + n] = cls(images=image, targets=target, batch_size=[n])
            i += n
        return data

Create one tensorclass for the training data and one for the validation data. This step reads every image once. It costs time now, and it saves the decoding and resizing of each image at every epoch.

train_data_tc = ImageNetData.from_dataset(train_data_raw)
val_data_tc = ImageNetData.from_dataset(val_data_raw)
print(train_data_tc)

ImageNetData(batch_size=[244], device=cpu, fields={
    images: u8[3,256,256],
    targets: i64[]})

DataLoaders#

A tensorclass implements __len__, __getitem__, and __getitems__, so you can pass it to a DataLoader as a map-style dataset. The DataLoader then reads each batch with one batched index, and the result is already an ImageNetData batch. The collate_fn receives this batch. The Collate module below moves the batch to the device and applies a transform to the images.

class Collate(nn.Module):
    def __init__(self, transform=None, device=None):
        super().__init__()
        self.transform = transform
        self.device = torch.device(device) if device is not None else None

    def __call__(self, x: ImageNetData):
        out = x
        if self.device is not None:
            if self.device.type == "cuda":
                # pinned memory makes the copy to the GPU asynchronous
                out = out.pin_memory()
            out = out.to(self.device)
        if self.transform is not None:
            out.images = self.transform(out.images)
        return out

The collate_fn is an nn.Module, so you can also move this step into the training loop and treat Collate as the first layer of the model.

The regular data loaders use NUM_WORKERS worker processes. The tensorclass data loaders run in the main process (no workers) and read one batch at a time.

batch_size = 8
train_dataloader = DataLoader(
    train_data,
    batch_size=batch_size,
    num_workers=NUM_WORKERS,
)
val_dataloader = DataLoader(
    val_data,
    batch_size=batch_size,
    num_workers=NUM_WORKERS,
)

train_dataloader_tc = DataLoader(  # noqa: TOR401
    train_data_tc,
    batch_size=batch_size,
    collate_fn=Collate(train_collate_transform, device),
)
val_dataloader_tc = DataLoader(  # noqa: TOR401
    val_data_tc,
    batch_size=batch_size,
    collate_fn=Collate(normalize, device),
)

Loading rate#

The loops below measure how many images per second each data loader delivers in one pass over the data. The regular data loader reads the images one by one from disk, applies the transform to each image, and then stacks the results. The timer starts at the fourth batch, because the first batches include the start of the worker processes.

def measure(dataloader, name):
    total = 0
    for i, batch in enumerate(dataloader):
        if i == 3:
            t0 = time.perf_counter()
        if isinstance(batch, ImageNetData):
            images, targets = batch.images, batch.targets
        else:
            images, targets = batch
            images, targets = images.to(device), targets.to(device)
        if i >= 3:
            total += images.shape[0]
    t = time.perf_counter() - t0
    print(f"{name}: {total / t:.0f} images per second, {t:.2f} s")


measure(train_dataloader, "train, regular DataLoader")
measure(train_dataloader_tc, "train, tensorclass DataLoader")

train, regular DataLoader: 979 images per second, 0.22 s
train, tensorclass DataLoader: 2374 images per second, 0.09 s

The tensorclass data loader reads uint8 batches from the memory-mapped tensor. Then it normalizes, crops, and flips each batch with one call per transform.

For the validation data, the memory-mapped tensor already holds the resized and center-cropped images. At load time, the tensorclass data loader only normalizes each batch.

measure(val_dataloader, "val, regular DataLoader")
measure(val_dataloader_tc, "val, tensorclass DataLoader")

val, regular DataLoader: 609 images per second, 0.21 s
val, tensorclass DataLoader: 19913 images per second, 0.01 s

The rates above come from the machine that built this page. They depend on the number of CPU cores, the disk, and the device. This dataset is small (244 training images and 153 validation images), so run the script on your own data before you choose a pipeline.

Results from ImageNet#

The charts below come from a run of an earlier version of this tutorial on the full ImageNet dataset, in February 2023 (tensordict 0.0.3). The machine was an AWS EC2 instance with 32 CPU cores and one A100 GPU. The charts compare the regular DataLoader with 8, 16, and 32 workers, the single-process tensorclass loader of this tutorial, and distributed versions of the tensorclass loader.

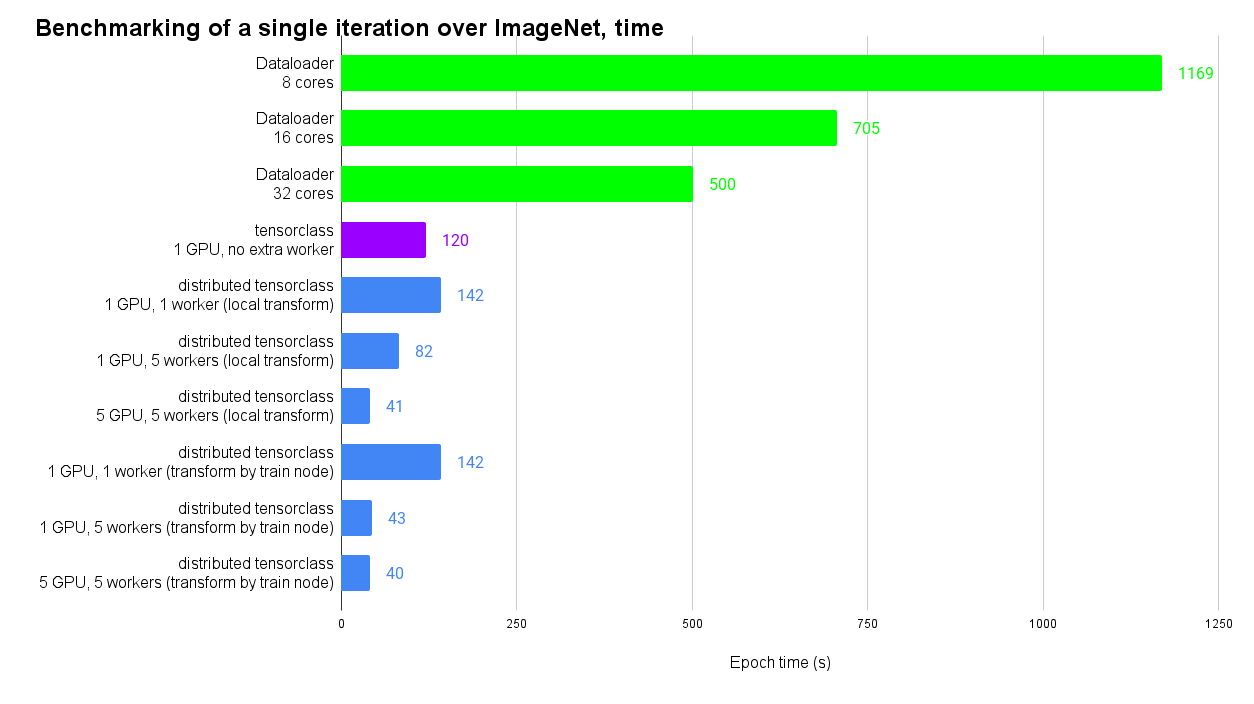

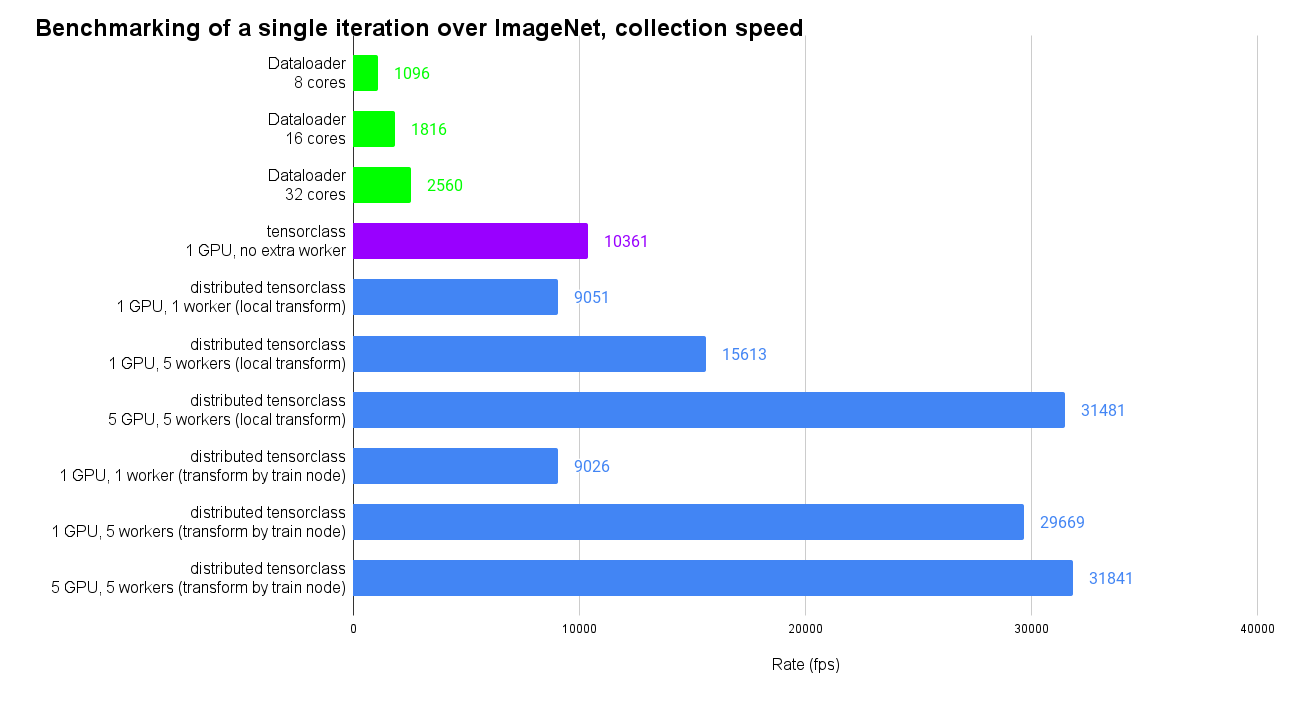

Bar chart showing runtimes of dataloaders compared with TensorClass Bar chart showing collection rate of dataloaders compared with TensorClass

In this run, one pass over the data took 120 s with the single-process tensorclass loader on one GPU. It took 500 s with a DataLoader with 32 workers, and 1169 s with 8 workers. The distributed rows use several processes to read batches from the memory-mapped tensor, on one or five GPUs. The code of the distributed benchmark is in benchmarks/distributed/test_dataloading.py. It needs ImageNet, several GPUs, and torch.distributed.rpc.

Conclusion#

You can now write a TensorClass with a from_dataset method that stores a dataset in uint8 memory-mapped tensors. Apply the deterministic transforms once, when you fill the memory map. Apply the random transforms and the normalization to whole batches, in a collate_fn. The data loader then reads a batch with one index into the memory-mapped tensor, instead of opening one file per image.
