Environment API

TorchRL offers an API to handle environments of different backends, such as gym, dm-control, dm-lab, model-based environments as well as custom environments. The goal is to be able to swap environments in an experiment with little or no effort, even if these environments are simulated using different libraries. TorchRL offers some out-of-the-box environment wrappers under torchrl.envs.libs, which we hope can be easily imitated for other libraries. The parent class EnvBase is a torch.nn.Module subclass that implements some typical environment methods using tensordict.TensorDict as a data organiser. This allows this class to be generic and to handle an arbitrary number of input and outputs, as well as nested or batched data structures.

Each env will have the following attributes:

• env.batch_size: a torch.Size representing the number of envs batched together.

• env.device: the device where the input and output tensordict are expected to live. The environment device does not mean that the actual step operations will be computed on device (this is the responsibility of the backend, with which TorchRL can do little). The device of an environment just represents the device where the data is to be expected when input to the environment or retrieved from it. TorchRL takes care of mapping the data to the desired device. This is especially useful for transforms (see below). For parametric environments (e.g. model-based environments), the device does represent the hardware that will be used to compute the operations.

• env.observation_spec: a Composite object containing all the observation key-spec pairs.

• env.state_spec: a Composite object containing all the input key-spec pairs (except action). For most stateful environments, this container will be empty.

• env.action_spec: a TensorSpec object representing the action spec.

• env.reward_spec: a TensorSpec object representing the reward spec.

• env.done_spec: a TensorSpec object representing the done-flag spec. See the section on trajectory termination below.

• env.input_spec: a Composite object containing all the input keys ("full_action_spec" and "full_state_spec").

• env.output_spec: a Composite object containing all the output keys ("full_observation_spec", "full_reward_spec" and "full_done_spec").

If the environment carries non-tensor data, a NonTensor instance can be used.

Env specs: locks and batch size

Environment specs are locked by default (through a spec_locked arg passed to the env constructor). Locking specs means that any modification of the spec (or its children if it is a Composite instance) will require to unlock it. This can be done via the set_spec_lock_(). The reason specs are locked by default is that it makes it easy to cache values such as action or reset keys and the likes. Unlocking an env should only be done if it expected that the specs will be modified often (which, in principle, should be avoided). Modifications of the specs such as env.observation_spec = new_spec are allowed: under the hood, TorchRL will erase the cache, unlock the specs, make the modification and relock the specs if the env was previously locked.

Importantly, the environment spec shapes should contain the batch size, e.g. an environment with env.batch_size == torch.Size([4]) should have an env.action_spec with shape torch.Size ([4, action_size]). This is helpful when preallocation tensors, checking shape consistency etc.

Auto-wrapping recurrent transforms via the policy= argument

Every concrete EnvBase subclass — GymEnv, DMControlEnv, custom subclasses, etc. — inherits a policy keyword argument on its constructor. When provided, the EnvBase metaclass post-init hook walks the policy looking for recurrent submodules (anything implementing make_tensordict_primer(), e.g. LSTMModule, GRUModule) and appends what’s missing to the env:

• an InitTracker (so is_init is written at every reset) if one is not already present in the env’s full_observation_spec;

• one TensorDictPrimer per recurrent submodule, providing the hidden-state primers the policy needs.

The hook is idempotent and spec-based — it asks the env’s full_observation_spec / full_state_spec what’s already there, so it works correctly even when transforms live inside child envs of a SerialEnv or ParallelEnv.

Because the argument is injected by the metaclass, it does not appear in subclass __init__ signatures (just like spec_locked and auto_reset). It is documented on EnvBase and works identically on every subclass. Pass it like any other keyword:

from torchrl.envs import GymEnv
from torchrl.modules import GRUModule

gru = GRUModule(input_size=4, hidden_size=8, num_layers=1,
                in_keys=["observation", "recurrent_state", "is_init"],
                out_keys=["features", ("next", "recurrent_state")])
# Single call: env now has InitTracker + TensorDictPrimer for the GRU.
env = GymEnv("CartPole-v1", policy=gru)

The same auto-wrap helper is applied a second time by Collector when an env is passed to it, so users who construct a bare env first and only later hand it to a collector with a recurrent policy still get the right transforms wired up. Because the helper is idempotent, going through both paths does not produce duplicates.

Limitations:

• If a custom InitTracker was attached with a renamed init_key, the helper won’t recognise it and may add a duplicate. Pass the same custom init_key (matched by leaf name in multi-agent setups) to avoid this, or wire transforms manually.

• Policy factories — Callable[[], Callable] objects — cannot be inspected without instantiation, so auto-wrapping is skipped for them. Either build the policy once and pass it via policy=, or attach transforms manually with get_env_transforms_from_module().

Compiling envs via the compile= constructor argument

Every concrete EnvBase subclass and TransformedEnv inherit a compile keyword argument on their constructors. When provided, the EnvBase metaclass post-init hook calls compile() on the fully-built env (after spec locking, after auto-reset wrapping if any, after policy-driven transform appending if any). Accepted values:

• False or None (default): no compilation.

• True: env.compile() with default torch.compile() settings.

• a dict: forwarded to compile().

Using a dict avoids name collisions between torch.compile() kwargs (backend, mode, fullgraph, dynamic, warmup, …) and constructor kwargs of specific envs. warmup is the number of eager calls to step_and_maybe_reset() before tracing kicks in; it stabilizes the input TensorDict layout (e.g. post-reset() vs. steady-state post-step_mdp) so the compiled function does not recompile.

The same flag works equally well with collectors:

from functools import partial
from torchrl.collectors import Collector
from torchrl.envs import GymEnv, TransformedEnv
from torchrl.envs.transforms import Compose

# Plain env, compiled with a 4-call warmup.
collector = Collector(
    partial(
        GymEnv,
        "HalfCheetah-v4",
        compile={"warmup": 4, "fullgraph": True, "mode": "reduce-overhead"},
    ),
    ...,
)

# TransformedEnv: compile applies to the outermost env, which is what
# the collector calls step_and_maybe_reset on.
collector = Collector(
    lambda: TransformedEnv(
        GymEnv("HalfCheetah-v4"),
        Compose(...),
        compile={"warmup": 4, "fullgraph": True},
    ),
    ...,
)

See compile() and eager() for the underlying methods.

Env methods

With these, the following methods are implemented:

• env.reset(): a reset method that may (but not necessarily requires to) take a tensordict.TensorDict input. It return the first tensordict of a rollout, usually containing a "done" state and a set of observations. If not present, a "reward" key will be instantiated with 0s and the appropriate shape.

  To reset deterministically to a state contained in the input tensordict (e.g. branch a rollout from a saved state, or replay a fixed initial condition), pass set_state=True: env.reset(td, set_state=True). For stateless environments such as PendulumEnv this honors the state entries found in td; for stateful environments that support it, the underlying set-state API is used; envs that cannot honor a provided state raise NotImplementedError. set_state is a keyword argument (not a tensordict key) so it never stacks/pads across a rollout. When set_state is left unspecified but the tensordict carries state, the state is honored for backwards compatibility and a FutureWarning is emitted: from v0.15 an unspecified set_state will be treated as False (state ignored, fresh reset).

• env.step(): a step method that takes a tensordict.TensorDict input containing an input action as well as other inputs (for model-based or stateless environments, for instance).

• env.step_and_maybe_reset(): executes a step, and (partially) resets the environments if it needs to. It returns the updated input with a "next" key containing the data of the next step, as well as a tensordict containing the input data for the next step (ie, reset or result or step_mdp()) This is done by reading the done_keys and assigning a "_reset" signal to each done state. This method allows to code non-stopping rollout functions with little effort:

  >>> data_ = env.reset()
  >>> result = []
  >>> for i in range(N):
  ...     data, data_ = env.step_and_maybe_reset(data_)
  ...     result.append(data)
  ...
  >>> result = torch.stack(result)


• env.set_seed(): a seeding method that will return the next seed to be used in a multi-env setting. This next seed is deterministically computed from the preceding one, such that one can seed multiple environments with a different seed without risking to overlap seeds in consecutive experiments, while still having reproducible results.

• env.rollout(): executes a rollout in the environment for a maximum number of steps (max_steps=N) and using a policy (policy=model). The policy should be coded using a tensordict.nn.TensorDictModule (or any other tensordict.TensorDict-compatible module). The resulting tensordict.TensorDict instance will be marked with a trailing "time" named dimension that can be used by other modules to treat this batched dimension as it should.

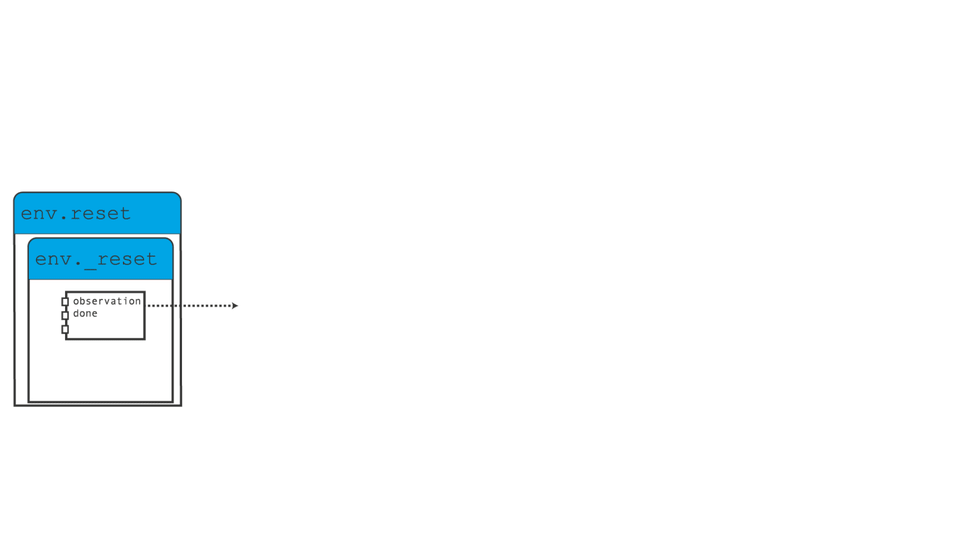

The following figure summarizes how a rollout is executed in torchrl.

TorchRL rollouts using TensorDict.

In brief, a TensorDict is created by the reset() method, then populated with an action by the policy before being passed to the step() method which writes the observations, done flag(s) and reward under the "next" entry. The result of this call is stored for delivery and the "next" entry is gathered by the step_mdp() function.

Note

In general, all TorchRL environment have a "done" and "terminated" entry in their output tensordict. If they are not present by design, the EnvBase metaclass will ensure that every done or terminated is flanked with its dual. In TorchRL, "done" strictly refers to the union of all the end-of-trajectory signals and should be interpreted as “the last step of a trajectory” or equivalently “a signal indicating the need to reset”. If the environment provides it (eg, Gymnasium), the truncation entry is also written in the EnvBase.step() output under a "truncated" entry. If the environment carries a single value, it will interpreted as a "terminated" signal by default. By default, TorchRL’s collectors and rollout methods will be looking for the "done" entry to assess if the environment should be reset.

Note

The split_trajectories() function can be used to slice adjacent trajectories. It relies on a "traj_ids" entry in the input tensordict, or on the junction of "done" and "truncated" if "traj_ids" is missing. The function emits an [N_traj, T_max] zero-padded tensordict + mask; for new code prefer the contiguous 1-D layout and SliceSampler instead — see Data layout: contiguous trajectories.

Note

In some contexts, it can be useful to mark the first step of a trajectory. TorchRL provides such functionality through the InitTracker transform.

Our environment tutorial provides more information on how to design a custom environment from scratch.

Base classes

EnvBase(*args, **kwargs)	Abstract environment parent class.
GymLikeEnv(*args, **kwargs)	A gym-like env is an environment.
EnvMetaData(*, tensordict, specs, ...[, ...])	A class for environment meta-data storage and passing in multiprocessed settings.

Custom native TorchRL environments

TorchRL offers a series of custom built-in environments.

ChessEnv(*args, **kwargs)	A chess environment that follows the TorchRL API.
FinancialRegimeEnv(*args, **kwargs)	A financial trading environment.
LLMHashingEnv(*args, **kwargs)	A text generation environment that uses a hashing module to identify unique observations.
PendulumEnv(*args, **kwargs)	A stateless Pendulum environment.
TicTacToeEnv(*args, **kwargs)	A Tic-Tac-Toe implementation.

MuJoCo custom environments

A family of MuJoCo-backed envs sharing one base class (MujocoEnv) with a swappable physics backend ("mujoco-torch" – the default and torch.compile-friendly native-torch engine, "mjx" – JAX-vectorized, or "mujoco" – official C-bindings). For envs with a standalone XML asset, the XML can be a local path or an http(s) URL, so users can point at remote models without vendoring them. Subclasses describe the task by overriding _compute_reward() and _compute_done().

The locomotion classes mirror the Gymnasium -v4 reward and termination semantics. SatelliteEnv is an attitude-control task with a 4- or 6-CMG cluster and a manipulability-based singularity penalty driving the policy away from internal singular configurations of the gimbal Jacobian. CubeBowlEnv is a compact manipulation task for scripted MuJoCo macro-control examples. It composes a local MuJoCo Menagerie UR5e + Robotiq 2F-85 scene.

MujocoEnv(*args[, num_workers, parallel])	Base TorchRL environment backed by a swappable MuJoCo physics engine.
AntEnv(*args[, num_workers, parallel])	Quadruped locomotion (15-DoF, 8 actuators).
CubeBowlEnv(*args[, num_workers, parallel])	UR-style cube-to-bowl manipulation scene.
HopperEnv(*args[, num_workers, parallel])	Single-legged hopping task (6-DoF, 3 actuators).
HumanoidEnv(*args[, num_workers, parallel])	Bipedal humanoid locomotion task (28 DoF, 21 actuators).
SatelliteEnv(*args[, num_workers, parallel])	Attitude-control task with 4 or 6 CMGs.
Walker2dEnv(*args[, num_workers, parallel])	Planar bipedal walker (9-DoF, 6 actuators).

Domain-specific

ModelBasedEnvBase(*args, **kwargs)	Basic environment for Model Based RL sota-implementations.
model_based.dreamer.DreamerEnv(*args, **kwargs)	Dreamer simulation environment.
model_based.dreamer.DreamerDecoder([...])	A transform to record the decoded observations in Dreamer.
model_based.imagined.ImaginedEnv(*args, **kwargs)	Imagination environment for model-based policy search.

Helpers

check_env_specs(env[, return_contiguous, ...])	Tests an environment specs against the results of short rollout.
exploration_type()	Returns the current sampling type.
get_available_libraries()	Returns all the supported libraries.
make_composite_from_td(data, *[, ...])	Creates a Composite instance from a tensordict, assuming all values are unbounded.
set_exploration_type	alias of set_interaction_type
step_mdp(tensordict[, next_tensordict, ...])	Creates a new tensordict that reflects a step in time of the input tensordict.
terminated_or_truncated(data[, ...])	Reads the done / terminated / truncated keys within a tensordict, and writes a new tensor where the values of both signals are aggregated.
