Exporting custom LLMs¶

If you have your own PyTorch model that is an LLM, this guide will show you how to manually export and lower to ExecuTorch, with many of the same optimizations as covered in the previous export_llm guide.

This example uses Karpathy’s nanoGPT, which is a minimal implementation of GPT-2 124M. This guide is applicable to other language models, as ExecuTorch is model-invariant.

Exporting to ExecuTorch (basic)¶

Exporting takes a PyTorch model and converts it into a format that can run efficiently on consumer devices.

For this example, you will need the nanoGPT model and the corresponding tokenizer vocabulary.

curl

curl https://raw.githubusercontent.com/karpathy/nanoGPT/master/model.py -O
curl https://huggingface.co/openai-community/gpt2/resolve/main/vocab.json -O

wget

wget https://raw.githubusercontent.com/karpathy/nanoGPT/master/model.py
wget https://huggingface.co/openai-community/gpt2/resolve/main/vocab.json

To convert the model into a format optimized for standalone execution, there are two steps. First, use the PyTorch export function to convert the PyTorch model into an intermediate, platform-independent intermediate representation. Then use the ExecuTorch to_edge and to_executorch methods to prepare the model for on-device execution. This creates a .pte file which can be loaded by a desktop or mobile application at runtime.

Create a file called export_nanogpt.py with the following contents:

# export_nanogpt.py

import torch

from executorch.exir import EdgeCompileConfig, to_edge
from torch.nn.attention import sdpa_kernel, SDPBackend
from torch.export import export, export_for_training

from model import GPT

# Load the model.
model = GPT.from_pretrained('gpt2')

# Create example inputs. This is used in the export process to provide
# hints on the expected shape of the model input.
example_inputs = (torch.randint(0, 100, (1, model.config.block_size), dtype=torch.long), )

# Set up dynamic shape configuration. This allows the sizes of the input tensors
# to differ from the sizes of the tensors in `example_inputs` during runtime, as
# long as they adhere to the rules specified in the dynamic shape configuration.
# Here we set the range of 0th model input's 1st dimension as
# [0, model.config.block_size].
# See https://pytorch.org/executorch/main/concepts#dynamic-shapes
# for details about creating dynamic shapes.
dynamic_shape = (
    {1: torch.export.Dim("token_dim", max=model.config.block_size)},
)

# Trace the model, converting it to a portable intermediate representation.
# The torch.no_grad() call tells PyTorch to exclude training-specific logic.
with torch.nn.attention.sdpa_kernel([SDPBackend.MATH]), torch.no_grad():
    m = export_for_training(model, example_inputs, dynamic_shapes=dynamic_shape).module()
    traced_model = export(m, example_inputs, dynamic_shapes=dynamic_shape)

# Convert the model into a runnable ExecuTorch program.
edge_config = EdgeCompileConfig(_check_ir_validity=False)
edge_manager = to_edge(traced_model,  compile_config=edge_config)
et_program = edge_manager.to_executorch()

# Save the ExecuTorch program to a file.
with open("nanogpt.pte", "wb") as file:
    file.write(et_program.buffer)

To export, run the script with python export_nanogpt.py (or python3, as appropriate for your environment). It will generate a nanogpt.pte file in the current directory.

For more information, see Exporting to ExecuTorch and torch.export.

Backend delegation¶

While ExecuTorch provides a portable, cross-platform implementation for all operators, it also provides specialized backends for a number of different targets. These include, but are not limited to, x86 and ARM CPU acceleration via the XNNPACK backend, Apple acceleration via the Core ML backend and Metal Performance Shader (MPS) backend, and GPU acceleration via the Vulkan backend.

Because optimizations are specific to a given backend, each pte file is specific to the backend(s) targeted at export. To support multiple devices, such as XNNPACK acceleration for Android and Core ML for iOS, export a separate PTE file for each backend.

To delegate a model to a specific backend during export, ExecuTorch uses the to_edge_transform_and_lower() function. This function takes the exported program from torch.export and a backend-specific partitioner object. The partitioner identifies parts of the computation graph that can be optimized by the target backend. Within to_edge_transform_and_lower(), the exported program is converted to an edge dialect program. The partitioner then delegates compatible graph sections to the backend for acceleration and optimization. Any graph parts not delegated are executed by ExecuTorch’s default operator implementations.

To delegate the exported model to a specific backend, we need to import its partitioner as well as edge compile config from ExecuTorch codebase first, then call to_edge_transform_and_lower.

Here’s an example of how to delegate nanoGPT to XNNPACK (if you’re deploying to an Android phone for instance):

# export_nanogpt.py

# Load partitioner for Xnnpack backend
from executorch.backends.xnnpack.partition.xnnpack_partitioner import XnnpackPartitioner

# Model to be delegated to specific backend should use specific edge compile config
from executorch.backends.xnnpack.utils.configs import get_xnnpack_edge_compile_config
from executorch.exir import EdgeCompileConfig, to_edge_transform_and_lower

import torch
from torch.export import export
from torch.nn.attention import sdpa_kernel, SDPBackend
from torch.export import export_for_training

from model import GPT

# Load the nanoGPT model.
model = GPT.from_pretrained('gpt2')

# Create example inputs. This is used in the export process to provide
# hints on the expected shape of the model input.
example_inputs = (
        torch.randint(0, 100, (1, model.config.block_size - 1), dtype=torch.long),
    )

# Set up dynamic shape configuration. This allows the sizes of the input tensors
# to differ from the sizes of the tensors in `example_inputs` during runtime, as
# long as they adhere to the rules specified in the dynamic shape configuration.
# Here we set the range of 0th model input's 1st dimension as
# [0, model.config.block_size].
# See https://pytorch.org/executorch/main/concepts.html#dynamic-shapes
# for details about creating dynamic shapes.
dynamic_shape = (
    {1: torch.export.Dim("token_dim", max=model.config.block_size - 1)},
)

# Trace the model, converting it to a portable intermediate representation.
# The torch.no_grad() call tells PyTorch to exclude training-specific logic.
with torch.nn.attention.sdpa_kernel([SDPBackend.MATH]), torch.no_grad():
    m = export_for_training(model, example_inputs, dynamic_shapes=dynamic_shape).module()
    traced_model = export(m, example_inputs, dynamic_shapes=dynamic_shape)

# Convert the model into a runnable ExecuTorch program.
# To be further lowered to Xnnpack backend, `traced_model` needs xnnpack-specific edge compile config
edge_config = get_xnnpack_edge_compile_config()
# Converted to edge program and then delegate exported model to Xnnpack backend
# by invoking `to` function with Xnnpack partitioner.
edge_manager = to_edge_transform_and_lower(traced_model, partitioner = [XnnpackPartitioner()], compile_config = edge_config)
et_program = edge_manager.to_executorch()

# Save the Xnnpack-delegated ExecuTorch program to a file.
with open("nanogpt.pte", "wb") as file:
    file.write(et_program.buffer)

Quantization¶

Quantization refers to a set of techniques for running calculations and storing tensors using lower precision types. Compared to 32-bit floating point, using 8-bit integers can provide both a significant speedup and reduction in memory usage. There are many approaches to quantizing a model, varying in amount of pre-processing required, data types used, and impact on model accuracy and performance.

Because compute and memory are highly constrained on mobile devices, some form of quantization is necessary to ship large models on consumer electronics. In particular, large language models, such as Llama2, may require quantizing model weights to 4 bits or less.

Leveraging quantization requires transforming the model before export. PyTorch provides the pt2e (PyTorch 2 Export) API for this purpose. This example targets CPU acceleration using the XNNPACK delegate. As such, it needs to use the XNNPACK-specific quantizer. Targeting a different backend will require use of the corresponding quantizer.

To use 8-bit integer dynamic quantization with the XNNPACK delegate, call prepare_pt2e, calibrate the model by running with a representative input, and then call convert_pt2e. This updates the computational graph to use quantized operators where available.

# export_nanogpt.py

from executorch.backends.transforms.duplicate_dynamic_quant_chain import (
    DuplicateDynamicQuantChainPass,
)
from executorch.backends.xnnpack.quantizer.xnnpack_quantizer import (
    get_symmetric_quantization_config,
    XNNPACKQuantizer,
)
from torchao.quantization.pt2e.quantize_pt2e import convert_pt2e, prepare_pt2e

# Use dynamic, per-channel quantization.
xnnpack_quant_config = get_symmetric_quantization_config(
    is_per_channel=True, is_dynamic=True
)
xnnpack_quantizer = XNNPACKQuantizer()
xnnpack_quantizer.set_global(xnnpack_quant_config)

m = export_for_training(model, example_inputs).module()

# Annotate the model for quantization. This prepares the model for calibration.
m = prepare_pt2e(m, xnnpack_quantizer)

# Calibrate the model using representative inputs. This allows the quantization
# logic to determine the expected range of values in each tensor.
m(*example_inputs)

# Perform the actual quantization.
m = convert_pt2e(m, fold_quantize=False)
DuplicateDynamicQuantChainPass()(m)

traced_model = export(m, example_inputs)

Additionally, add or update the to_edge_transform_and_lower() call to use XnnpackPartitioner. This instructs ExecuTorch to optimize the model for CPU execution via the XNNPACK backend.

from executorch.backends.xnnpack.partition.xnnpack_partitioner import (
    XnnpackPartitioner,
)

edge_config = get_xnnpack_edge_compile_config()
# Convert to edge dialect and lower to XNNPack.
edge_manager = to_edge_transform_and_lower(traced_model, partitioner = [XnnpackPartitioner()], compile_config = edge_config)
et_program = edge_manager.to_executorch()

with open("nanogpt.pte", "wb") as file:
    file.write(et_program.buffer)

For more information, see Quantization in ExecuTorch.

Profiling and Debugging¶

After lowering a model by calling to_edge_transform_and_lower(), you may want to see what got delegated and what didn’t. ExecuTorch provides utility methods to give insight on the delegation. You can use this information to gain visibility into the underlying computation and diagnose potential performance issues. Model authors can use this information to structure the model in a way that is compatible with the target backend.

Visualizing the Delegation¶

The get_delegation_info() method provides a summary of what happened to the model after the to_edge_transform_and_lower() call:

from executorch.devtools.backend_debug import get_delegation_info
from tabulate import tabulate

# ... After call to to_edge_transform_and_lower(), but before to_executorch()
graph_module = edge_manager.exported_program().graph_module
delegation_info = get_delegation_info(graph_module)
print(delegation_info.get_summary())
df = delegation_info.get_operator_delegation_dataframe()
print(tabulate(df, headers="keys", tablefmt="fancy_grid"))

For nanoGPT targeting the XNNPACK backend, you might see the following (note that the numbers below are for illustration purposes only and actual values may vary):

Total  delegated  subgraphs:  145
Number  of  delegated  nodes:  350
Number  of  non-delegated  nodes:  760

	op_type	# in_delegated_graphs	# in_non_delegated_graphs
0	aten__softmax_default	12	0
1	aten_add_tensor	37	0
2	aten_addmm_default	48	0
3	aten_any_dim	0	12
	…
25	aten_view_copy_default	96	122
	…
30	Total	350	760

From the table, the operator aten_view_copy_default appears 96 times in delegate graphs and 122 times in non-delegated graphs. To see a more detailed view, use the format_delegated_graph() method to get a formatted str of printout of the whole graph or use print_delegated_graph() to print directly:

from executorch.exir.backend.utils import format_delegated_graph
graph_module = edge_manager.exported_program().graph_module
print(format_delegated_graph(graph_module))

This may generate a large amount of output for large models. Consider using “Control+F” or “Command+F” to locate the operator you’re interested in (e.g. “aten_view_copy_default”). Observe which instances are not under lowered graphs.

In the fragment of the output for nanoGPT below, observe that a transformer module has been delegated to XNNPACK while the where operator is not.

%aten_where_self_22 : [num_users=1] = call_function[target=executorch.exir.dialects.edge._ops.aten.where.self](args = (%aten_logical_not_default_33, %scalar_tensor_23, %scalar_tensor_22), kwargs = {})
%lowered_module_144 : [num_users=1] = get_attr[target=lowered_module_144]
backend_id: XnnpackBackend
lowered graph():
    %p_transformer_h_0_attn_c_attn_weight : [num_users=1] = placeholder[target=p_transformer_h_0_attn_c_attn_weight]
    %p_transformer_h_0_attn_c_attn_bias : [num_users=1] = placeholder[target=p_transformer_h_0_attn_c_attn_bias]
    %getitem : [num_users=1] = placeholder[target=getitem]
    %sym_size : [num_users=2] = placeholder[target=sym_size]
    %aten_view_copy_default : [num_users=1] = call_function[target=executorch.exir.dialects.edge._ops.aten.view_copy.default](args = (%getitem, [%sym_size, 768]), kwargs = {})
    %aten_permute_copy_default : [num_users=1] = call_function[target=executorch.exir.dialects.edge._ops.aten.permute_copy.default](args = (%p_transformer_h_0_attn_c_attn_weight, [1, 0]), kwargs = {})
    %aten_addmm_default : [num_users=1] = call_function[target=executorch.exir.dialects.edge._ops.aten.addmm.default](args = (%p_transformer_h_0_attn_c_attn_bias, %aten_view_copy_default, %aten_permute_copy_default), kwargs = {})
    %aten_view_copy_default_1 : [num_users=1] = call_function[target=executorch.exir.dialects.edge._ops.aten.view_copy.default](args = (%aten_addmm_default, [1, %sym_size, 2304]), kwargs = {})
    return [aten_view_copy_default_1]

Performance Analysis¶

Through the ExecuTorch Developer Tools, users are able to profile model execution, giving timing information for each operator in the model.

Prerequisites¶

ETRecord generation (Optional)¶

An ETRecord is an artifact generated at the time of export that contains model graphs and source-level metadata linking the ExecuTorch program to the original PyTorch model. You can view all profiling events without an ETRecord, though with an ETRecord, you will also be able to link each event to the types of operators being executed, module hierarchy, and stack traces of the original PyTorch source code. For more information, see the ETRecord docs.

In your export script, after calling to_edge() and to_executorch(), call generate_etrecord() with the EdgeProgramManager from to_edge() and the ExecuTorchProgramManager from to_executorch(). Make sure to copy the EdgeProgramManager, as the call to to_edge_transform_and_lower() mutates the graph in-place.

# export_nanogpt.py

import copy
from executorch.devtools import generate_etrecord

# Make the deep copy immediately after to to_edge()
edge_manager_copy = copy.deepcopy(edge_manager)

# ...
# Generate ETRecord right after to_executorch()
etrecord_path = "etrecord.bin"
generate_etrecord(etrecord_path, edge_manager_copy, et_program)

Run the export script and the ETRecord will be generated as etrecord.bin.

ETDump generation¶

An ETDump is an artifact generated at runtime containing a trace of the model execution. For more information, see the ETDump docs.

Include the ETDump header and namespace in your code.

// main.cpp

#include <executorch/devtools/etdump/etdump_flatcc.h>

using executorch::etdump::ETDumpGen;
using torch::executor::etdump_result;

Create an Instance of the ETDumpGen class and pass it to the Module constructor.

std::unique_ptr<ETDumpGen> etdump_gen_ = std::make_unique<ETDumpGen>();
Module model("nanogpt.pte", Module::LoadMode::MmapUseMlockIgnoreErrors, std::move(etdump_gen_));

After calling generate(), save the ETDump to a file. You can capture multiple model runs in a single trace, if desired.

ETDumpGen* etdump_gen = static_cast<ETDumpGen*>(model.event_tracer());

ET_LOG(Info, "ETDump size: %zu blocks", etdump_gen->get_num_blocks());
etdump_result result = etdump_gen->get_etdump_data();
if (result.buf != nullptr && result.size > 0) {
    // On a device with a file system, users can just write it to a file.
    FILE* f = fopen("etdump.etdp", "w+");
    fwrite((uint8_t*)result.buf, 1, result.size, f);
    fclose(f);
    free(result.buf);
}

Additionally, update CMakeLists.txt to build with Developer Tools and enable events to be traced and logged into ETDump:

option(EXECUTORCH_ENABLE_EVENT_TRACER "" ON)
option(EXECUTORCH_BUILD_DEVTOOLS "" ON)

# ...

target_link_libraries(
    # ... omit existing ones
    etdump) # Provides event tracing and logging

target_compile_options(executorch PUBLIC -DET_EVENT_TRACER_ENABLED)
target_compile_options(portable_ops_lib PUBLIC -DET_EVENT_TRACER_ENABLED)

Build and run the runner, you will see a file named “etdump.etdp” is generated. (Note that this time we build in release mode to get around a flatccrt build limitation.)

(rm -rf cmake-out && mkdir cmake-out && cd cmake-out && cmake -DCMAKE_BUILD_TYPE=Release ..)
cmake --build cmake-out -j10
./cmake-out/nanogpt_runner

Performance debugging and profiling¶

Once you’ve collected debug artifacts ETDump (and optionally an ETRecord), you can use the Inspector API to view performance information.

from executorch.devtools import Inspector

inspector = Inspector(etdump_path="etdump.etdp")
# If you also generated an ETRecord, then pass that in as well: `inspector = Inspector(etdump_path="etdump.etdp", etrecord="etrecord.bin")`

with open("inspector_out.txt", "w") as file:
    inspector.print_data_tabular(file)

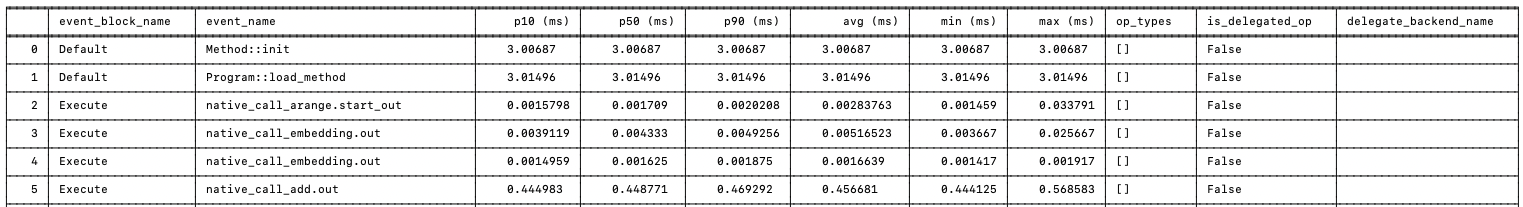

This prints the performance data in a tabular format in “inspector_out.txt”, with each row being a profiling event. Top rows look like this: View in full size

To learn more about the Inspector and the rich functionality it provides, see the Inspector API Reference.
