Unbacked Dynamic Shapes Shouldn't Be Slower — Now They Aren't
TL;DR – Unbacked dynamic shapes had 2x–20% slowdowns on TorchBench and ~30% regressions on vLLM. We fixed the root causes — now unbacked matches backed across all tested models and configurations.
Motivation
These regressions were blocking adoption in Frontier workloads like vLLM. Demand for unbacked shapes is growing — just in the past week, multiple users needed them to control recompilations — so the gap was not acceptable.
We’ve now solved this: unbacked matches backed across all HuggingFace TorchBench models (up to 2x faster) and 30+ vLLM models across multiple configurations.
The invariant and the task
The key idea behind this work is simple:
For a given graph G and guard set E, unbacked shapes must match the performance of backed shapes, given identical optimization hints.
Any optimization or decision available in backed mode should also be available in unbacked mode under the same guards. There is no fundamental reason for divergence — if it happens, it’s a bug in how decisions are made.
In the vLLM setting, E is effectively fixed (often empty, or range-bounded), so there is no reason for the performance divergence.
The task was clear: given the same guards and appropriate hints for unbacked shapes, optimization decisions should be identical between modes.
Approach
We approached this in three steps: make the gap measurable, fix the foundation, then eliminate the remaining divergences.
1. Make the gap measurable (TorchBench unbacked mode)
We first added an unbacked mode to TorchBench to enable fast iteration and direct measurement. This required fixing a number of data-dependent errors along the way.
The gap was large and consistent:
| Model | Regression |
|---|---|
| MegatronBertForCausalLM | 0.86x |
| BartForCausalLM | 0.80x |
| BertForMaskedLM | 0.75x |
| T5Small | 0.72x |
| MobileBertForMaskedLM | 0.53x |
2. Fix the foundation — size-hinting refactor
The first real fix was at the foundation. The size-hinting APIs were fragmented, inconsistent, and easy to misuse. Instead of chasing individual regressions, we simplified the system with a clear goal: ensure that guardless optimizations work reliably for unbacked shapes and do not diverge when hints are available.
We replaced the existing size-hinting APIs with two primitives:
optimization_hint(~200 call sites migrated) — Always produces an optimization hint, even for unbacked symbols. This ensures optimizations are never silently skipped and enforces consistency across symbolic expressions and shape env constraints.guarding_hint_or_throw— Used only for guards. Throws on unbacked, used when callers want to guard on hints.
This refactor fixes many existing optimization gaps and ensures that future optimizations work correctly for unbacked shapes by default.
Meaningful optimization hints are required for unbacked symbols to enable
correct optimization decisions. These are provided via override_hint in
mark_unbacked, or via torch._dynamo.optimization_hint() for
data-dependent cases.
3. Close the remaining gaps — individual optimization fixes
After fixing the foundation, I re-ran TorchBench and still saw regressions. The approach was straightforward: compare Inductor-generated code between backed and unbacked, identify where decisions diverge, fix, and repeat.
Optimizations skipped or using dummy decisions for unbacked shapes:
Several optimizations were either skipped entirely for unbacked symbols or not using the proper size-hinting APIs:
Switching to optimization_hint and all_unbacked_hinted across all of
these made optimization decisions consistent between backed and unbacked
modes.
Symbolic reasoning gaps in reshape indexing:
In _dynamic_reshape_indexer, comparisons like u0 * 12 > u0 could not
be proven symbolically (e.g., because u0 could be 0), causing the
compiler to take a slow fallback path — even when the edge cases were
irrelevant in practice.
Improving symbolic reasoning
for these cases recovered ~20% performance.
Two additional changes were needed to achieve identical Inductor output
code but had minimal performance impact:
min/max bounds for
mark_unbacked to enable correct 32-bit indexing decisions, and
runtime assertion skipping.
Final state

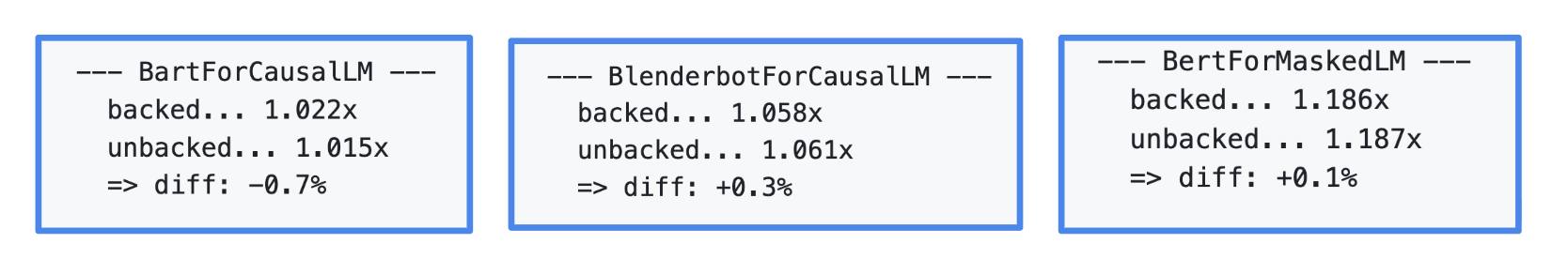

With these changes, backed and unbacked shapes achieve identical performance on ALL HuggingFace TorchBench models. Notably, these models did not rely on significant guard-based optimizations.
Furthermore, unbacked performance was validated on vLLM across a wide range of models and configurations — including 29 text models, multimodal, FP8, NVFP4, CUDA graphs on/off, and mixed static + dynamic paths — with no regressions observed.
Protection from future regression
To ensure this remains true, a periodic Inductor test was added that enforces performance parity between backed and unbacked shapes on a set of HuggingFace TorchBench models.
As vLLM moves to unbacked by default, its performance dashboards will also serve as a continuous signal and line of defense against regressions.
What’s next
- Now that unbacked performance matches backed, the next step is a safe, progressive migration plan for vLLM from backed to unbacked with minimal disruption.
- The main remaining piece for unbacked is better APIs for specifying dynamic shapes specs and dispatch — this will be a focus in Q2.
Acknowledgments
Special thanks to Jason Ansel (@jansel) for
his prompt diff reviews throughout the process. Thanks to Bob Ren
(@bobrenjc93) for adding the early work
of hint override that optimization_hint depends on, and to Colin Peppler
(@colinpeppler) for adding the logic of
consistent optimization hint generation that was consolidated in
optimization_hint.
